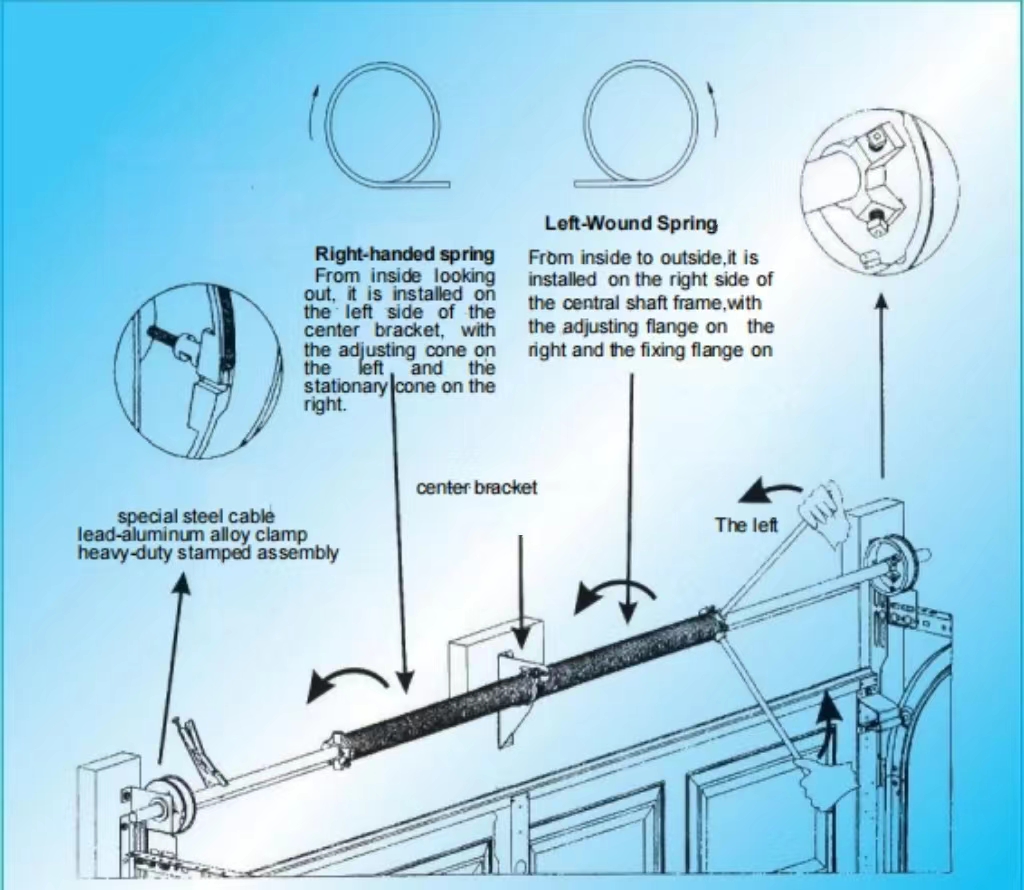

NECESSARY DATA FOR TORSION SPRING DESIGN
| Lifting method | Door panel size (width x height) | The weight of the door panel | Weight of accessories | Winding wheel model | Is anti fall installed |
Standard improvement | eg.4000X2400mm | Weight of the light door panel | Weight of all accessories installed on the door panel | 8、12、18、32 flat wheels | Is anti fall installed |
Note: Standard lift doors are equipped with a cable break safety device or a torsion spring break safety device. Special consideration must be given when designing the torque of the torsion spring. Ensure that when the door is fully opened to the top position, the anti-drop device does not get caught in the track and that the pulley continues to rotate without being blocked by the anti-drop wheel on the torsion spring shaft.
If a cable break and fall protection device is installed, bumpers (door pushers) must be installed at the rear end of the track.

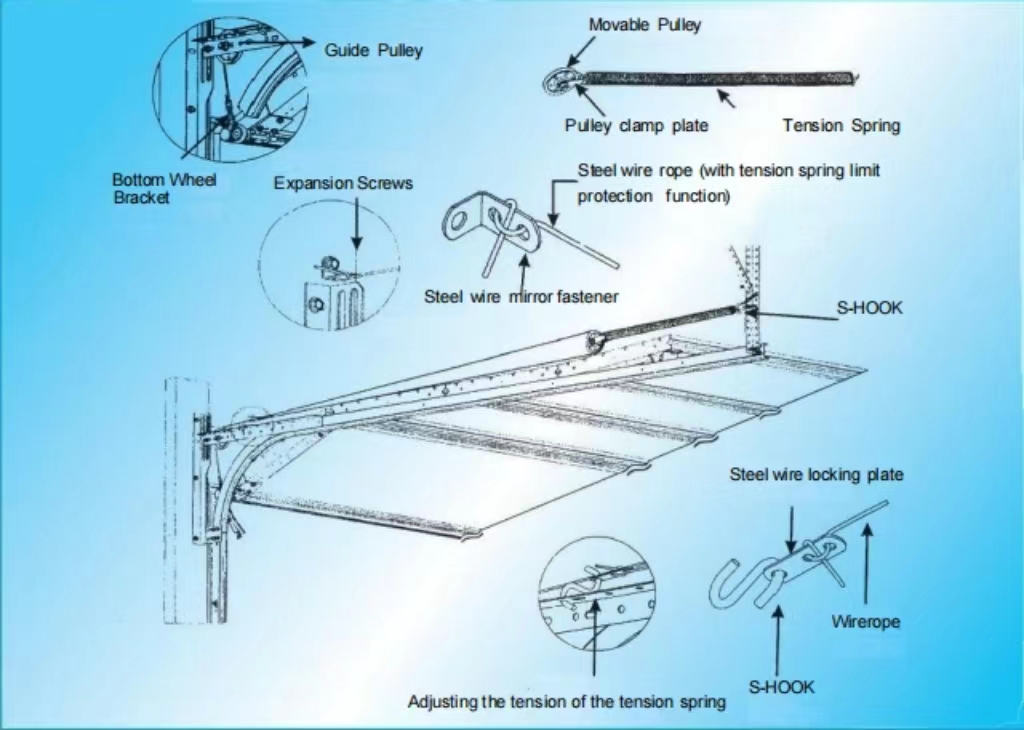

NECESSARY DATA FORTENSION SPRING DESIGN
Door panel size (width x height) | Specific gravity of door panels | Weight of accessories |
| eg.3000X3000mm | 7.5kg/m | 0.5kg/m² |

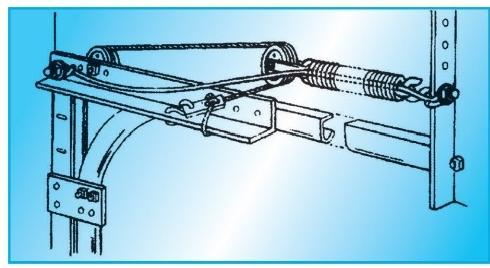

| TENSION SPRING ACCESSORIES | 2 Tension Springs Per Set | 2 steel wire ropes per set, length=door height ×2-2.25 times |
2 Safety Wire Ropes Per Set | 4 Pulleys Per Set | 2 Pulley Forks Per Set |

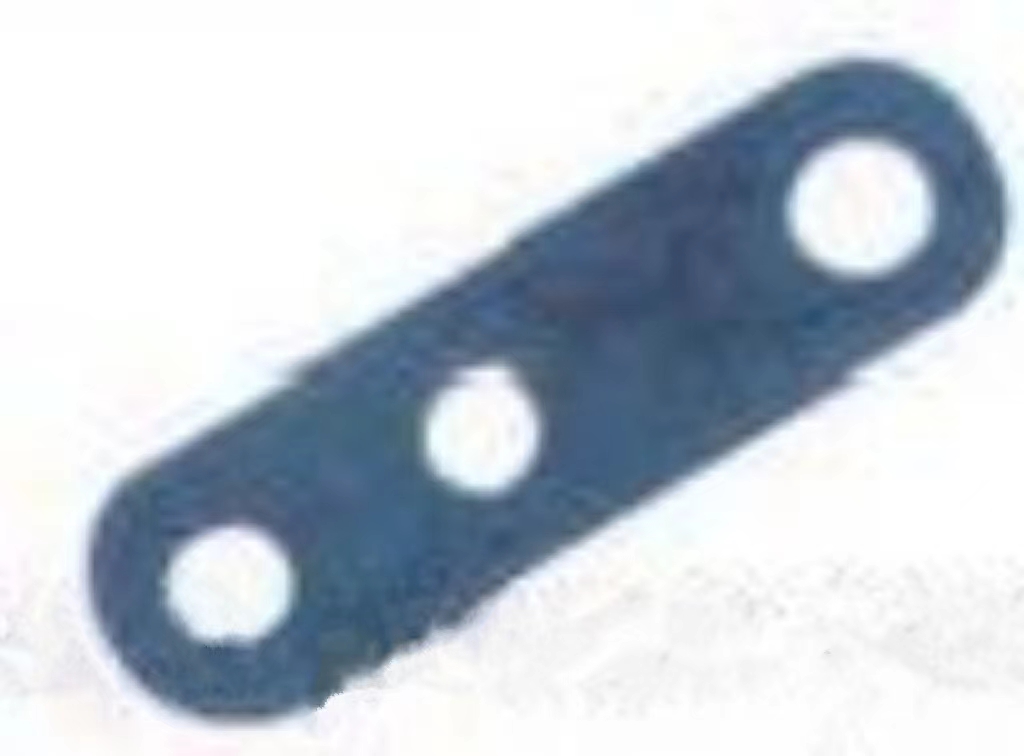

Steel wire rope locking plates 2 pieces per set | S-Hook,4 Pieces Per Set | 10x304 Pieces Per Set |
